Split Type Elevator Load Weighing Device RHP-X-OMS-560 Elevator Load Weigher

Brand Name : SUMT, ANT

Model Number : OMS-560-RHP-E-3T

Place of Origin : NINGBO CITY, CHINA

MOQ : MOQ:20sets

Price : USD80-140/PC

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000-1000pcs/month

Delivery Time : 3-20 working days depending on the quantity

Packaging Details : Box+carton, 25SETS/Carton, 14kg/carton, carton size: 45x34x36.5cm

Material : Stainless steel

Rated Load : Any weight

Voltage : DC19-29V

Cable length : 3m, 4 blank wire

Installation location : ifts' crosshead beam /frame structure

Display mode : Weight/percentage

Structure : Split type

Alarm relay output : 5(overload,full load,empty load, optical,acousti

Contact Now

SUMMIT Split type elevator load measuring system RHP-X-OMS-560 mounting on car frame crosshead beam strain link tesion load weighing device

Installation loacation: Between wire rope hitch plates:OMS-560-RHP-X
Split Type Elevator Load Weighing Device RHP-X-OMS-560 Elevator Load Weigher
Description:

The load weighing system consists of one crossbeam sensor RHP-X and a weighing control unit OMS-560, and the sensors RHP-X is mounted to load bearing members of the car or shaft assembly that are stressed with bending loads during operation.

The bending is recorded by the crossbeam sensor and sent to the control unit OMS-560 for evaluation, and we have a range of weighing control units(OMS-820, OMS-520, OMS-370C and so on), which is matched with the beam sensor RHP-X.

Features:

Cost efficient and precise method
Very easy to install
Static load at fixing point(under the plate of wire rope attachment)
Suitable for the new installations and modernization project
Menu-guided operation
5 relays output overload,full,half empty,optical, audio output
DIN Rail or on flat surface mounting with screws
IP-65 rated plastic box.
Integrated software to correct weight increases due to compensating chain.
Display load as well as percentage
Protecting important data from being disturbed by password
Automatic correction of zero drift, makes the equipment in optimum stage
Self-learning function, regulating high floor additional weight error
Control equipment swap entirely,self-diagnosis and alarming
Self-learning operating conducted by any fixed load

Control Unit:OMS-560
Operation Voltage	AC/DC16-48V	Sensor operation voltage	DC5V
Nominal power	4W	Signal Hold Voltage	AC/DC12-45V
Input Channel (Load Cell )	2	Measuring precision	0.1%
Relay Number	5(overload,full,half empty,optical, audio output)	Operation temperature	-45degree-+85degree
Contact Load	8A250VAC,5A 250VAC,5A 30VDC	Size	90x84x58mm
Display Type	4 digits 0.56 inch LED	Weight	265g
Display mode	Weight/percentage	Shell material	ABS

Model:	RHP-X
Rated Load	Undefined, works with bending steel frame	Output Resistance	352M+/-2 ohm
Rated Output	2.0+-0.02%mv/v	Connection type	4 blank wire
Total error	+/-0.5% F.S	Input Resistance	380+/-10 ohm
Repeatability	+/-0.5% F.S.	Construction material	Stainless Alloy steel
Creep 30min	+/-0.05% F.S/30min	Protection Class	IP68
Zero Balance	+/-1% F.S.	Insulation impedance	≥5000Ω
T C SPAN	+/-0.02% F.S./10 degree Celsius	Cable length	3m(blank)
Operation temperature range	-30 to 70 degree Celsius	Excitation	DC 5-12V

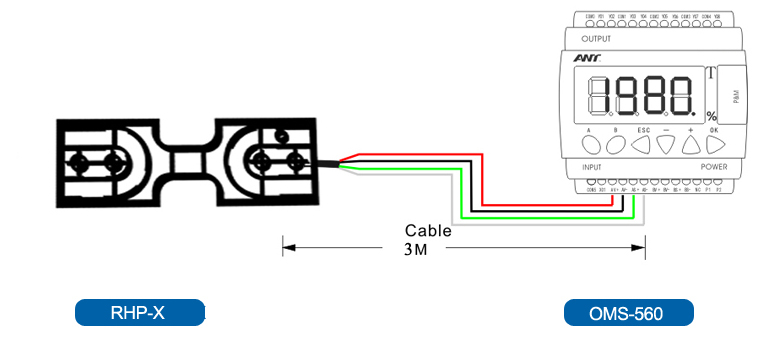

Wiring Diagram:
Split Type Elevator Load Weighing Device RHP-X-OMS-560 Elevator Load Weigher
4-core blank wire :

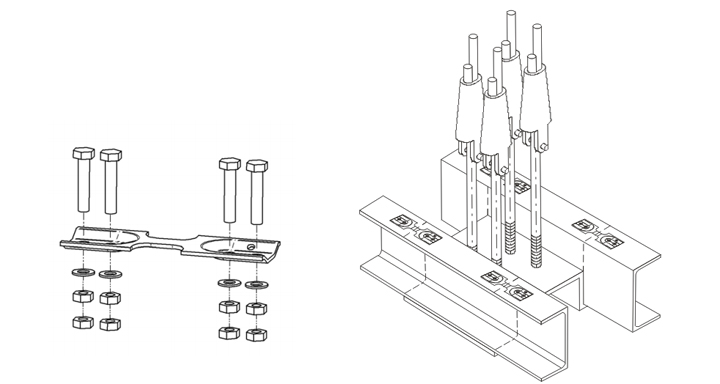

Installation location&Size:

Instruction:
The purpose of the SUMMIT Load Weighing system is to measure the load in the elevator and pro-vide usable information about the load to the elevator controller. This information is used forpre-torquing and for dispatching decisions, e.g. light load anti-nuisance, heavy load and over-load.
The system usually consists of a sensor or group of sensors mounted on the elevator’s some position such as clamping on wire rope, or under cabin, under the wire rope plate installation and a control unit. The sensor(s) provide a signal to the control unit directly related to the amount of load in the cab. The load weighing control accepts this signal and provides usable data to the elevator controller in the form of an analog signal and discrete relay contacts.
